Modules and Zones

The Qcon-24 conveying system is made up of modules.  These modules can be straights, curves, merges, diverts, right angle transfers, inclines or declines.  Each module is divided into a number of “zones.”

Straight Module

 Standard Lengths:  120”, 90”, 60”, 30”

Standard Components of Straight Modules

bullet

 Programmable Logic Controller (PLC)

bullet

Required number of motorized rollers:

bullet

You can run up to 12 idlers off of one motorized roller

bullet

Required number of idler rollers

bullet

 Photo electric eye sensor and sensor reflector in each zone of module

bullet

24v DC power supply needed per 16 motorized rollers

bullet

Necessary hardware

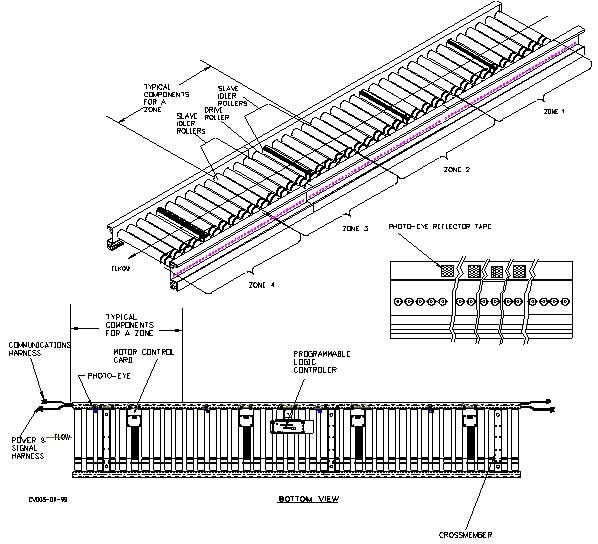

    Example of 120” Straight Module

Straight dwg.jpg (59326 bytes) (click on picture)

Slaved Modules

bullet

12” – 30” Modules:  electrically slaved (see definition below.)

bullet

Less than 12” Modules:  mechanically slaved (see definition below.)

bullet

Electrically slaved modules:  (12” – 27”) Container accumulation cannot take place in an electrically slaved module.  Controlled by an upstream PLC.  Contains slaved drive roller, idler rollers and a motor control card.  The motor control card is run off of a companion zone motor control card.

bullet

30” “one zone” electrically slaved module:  Container accumulation can take place in a 30” slaved module.

bullet

Mechanically slaved modules:  (less than 12”) Contains only idler rollers slaved via o-rings.

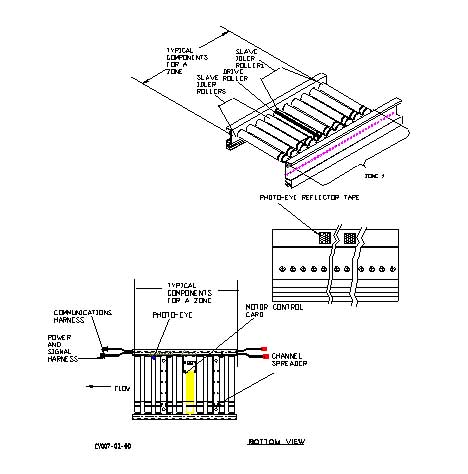

Example of 30” “one zone” slave

30 on zone slave.jpg (23781 bytes) (click on picture)

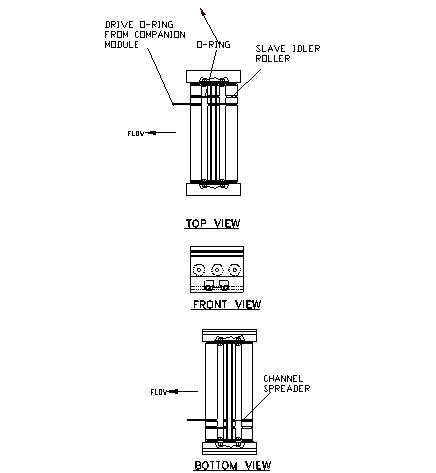

Example of 9” Mechanically Slaved Module

9 mech slave.jpg (12133 bytes) (click on picture)

Curved Modules

Standard: 30 degree, 45 degree, 60 degree, or 90 degree

bullet

90 Degree Curve Module (made up of two zones):  Components include PLC, motor control card, motorized roller with tapered sleeve, idler rollers with tapered sleeves and photo sensors and reflectors.

bullet

60 Degree Curve Module:  “One Zone” Electrically slaved

bullet

45 Degree Curve Module:  Electrically slaved

bullet

30 Degree Curve Module:  Electrically slaved

Container accumulation can take place in 90 degree and 60 degree curves.

Example of 90 degree curved module

90 deg curve.jpg (36840 bytes) (click on picture)


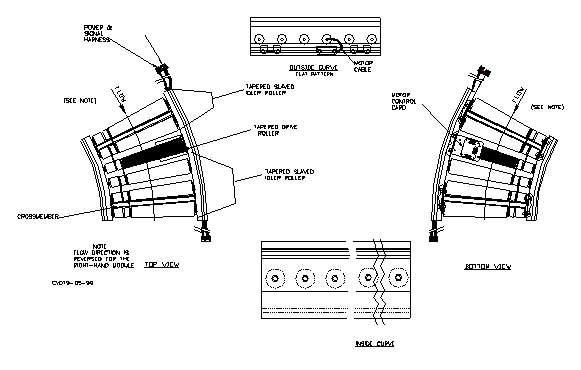

Example of 30-Degree Curve

30 deg curve.jpg (27874 bytes) (click on picture)

Right Angle Transfer Modules (RAT)

bullet

Bi-direction

bullet

RAT provides a means of moving containers off of the main flow path to the left or right

bullet

Containers may also pass through the RAT and continue down the main flow path

 Components of RAT:

bullet

PLC

bullet

Three motor control cards for the following:

bullet

Roller Motor Control:  moves a container onto or through the RAT

bullet

Pop-up assembly:  moves a container to the right or left at a right angle.

bullet

Belt carriage assembly:  connected to pop-up via drive belt.

bullet

Photo eyes and reflectors

bullet

Two limit switches (up and down)

bullet

Necessary hardware

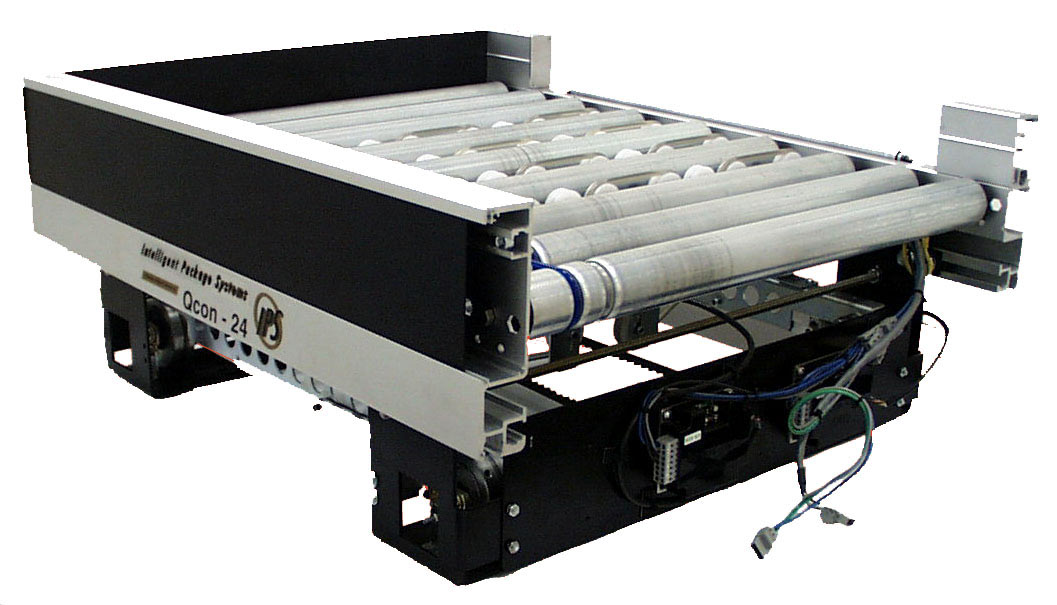

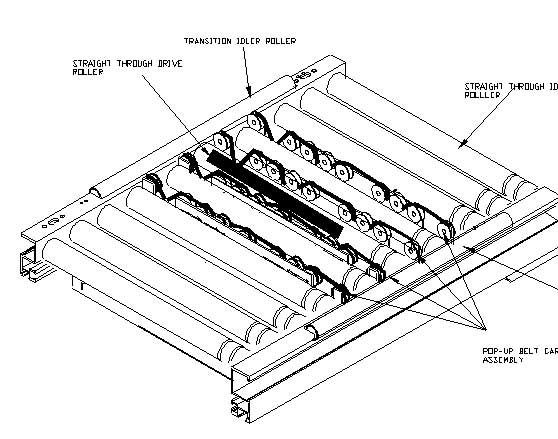

rat dwg.jpg (46210 bytes) (click on pictures)  rat white.jpg (89494 bytes)

Divert Modules

Provides a means of “diverting” a container off of the main flow path into another flow or allowing the container to continue down its original flow path.

bullet

Standard:  30 degree angle

bullet

Each divert module contains 4 zones

Standard Components

bullet

PLC

bullet

Motor control card for each of the 9 motorized rollers

bullet

Motor relay

bullet

Motor brake relay

bullet

2 limit switches

bullet

Necessary hardware

bullet

Standard ways of controlling:  Scanner or manual divert switch

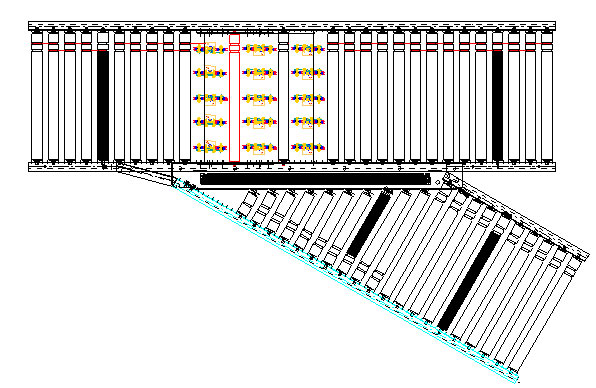

Example of Divert Module

divert dwg.jpg (68866 bytes) (click on pictures) divert-merge w arrows .jpg (31349 bytes)

Merge Modules

Provides means of moving container straight down main flow path or accepting a merging container into that flow path.

bullet

Standard:  30 degree angle

bullet

Each Merge Module contains 4 zones

 Standard components

bullet

PLC

bullet

Five motor control cards for each motorized roller

bullet

Required number of idler rollers

bullet

Photo eyes and reflectors

bullet

Necessary hardware

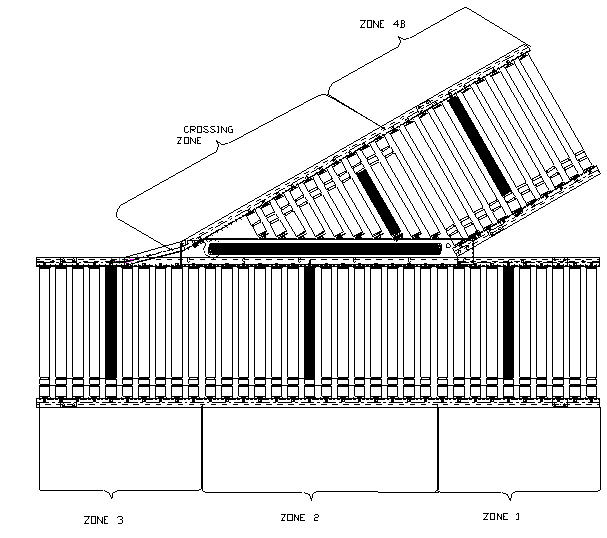

merge dwg.jpg (78132 bytes) (click on picture)
