Intelligent Package Systems.
A Division of M2L Systems, LLC.

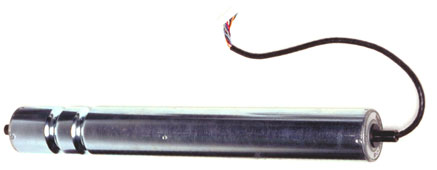

Standard Motorized Rollers

bullet

24vDC brushless motorized roller

bullet

Continuous duty

bullet

Maximum of 1,800 starts per hour

bullet

Circuit Board thermal protection:  Reacts at 158F Motor thermal protection:  Reacts at 221F Built-in current limiter

bullet

Electric brake to minimize inertia

bullet

Variable Speed Function:  25% - 100% of the maximum peripheral velocity 1.9” diameter

bullet

No lubrication required

bullet

IP44 enclosure Applicable ambient temperature:  0 degrees C. through 40C.

bullet

Class E motor insulation

bullet

LED signal output for self diagnosis

bullet

Integrated motor cable for quick wiring Spring loaded shaft and double grooved tube







24v DC Power Supply

bullet

Input voltage:  90-130 / 180 – 260 VAC

bullet

Input current:  5.5A @ 230VAC for 600W / 7.5A @ 230VAC for 800W

bullet

Working Temperature:  0-50 degree C 20

bullet

Working humidity:  20% - 90 % RH

bullet

DC Voltage adj.:  + 5% (typical)

bullet

Line regulation:  + 1% Load regulation: + 2%

bullet

Leakage current:  3.5mA (MAX.) 600W Parallel switching power supply

bullet

Short circuit protection

bullet

Overload protection

bullet

Over voltage protection

bullet

Over temperature protection

bullet

Built-in remote sense / control





Photo Eye

bullet

Rugged Plastic Housing

bullet

Signal strength indicator

bullet

High Switching Frequency

bullet

Short circuit and over current protected

bullet

Power supply reverse polarity protected

bullet

Polarizing filters prevent false readings on reflective surfaces

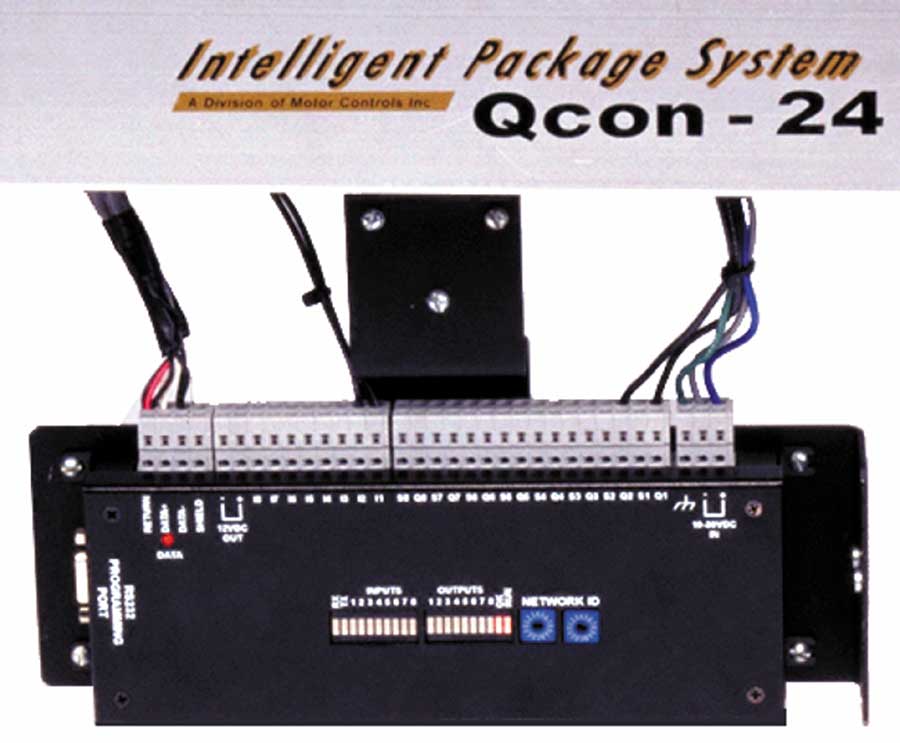

PLC (Programmable Logic Controller)

bullet

Fully programmable:  enables independent operation of each section if needed.

bullet

Self contained

bullet

8 voltage-driven inputs

bullet

8 Open Collector outputs

bullet

Network communications through CsCan protocol

bullet

Device programming:  PC or CAN port RS232 Programming Port Local diagnostics for all inputs and outputs

bullet

CAN bus network can network up to 253 nodes with use of repeaters after every 64th node.

bullet

Optional host PLC and Host PC interface

bullet

Can reverse motor direction through PLC



Lets look at the Modules and Zones
